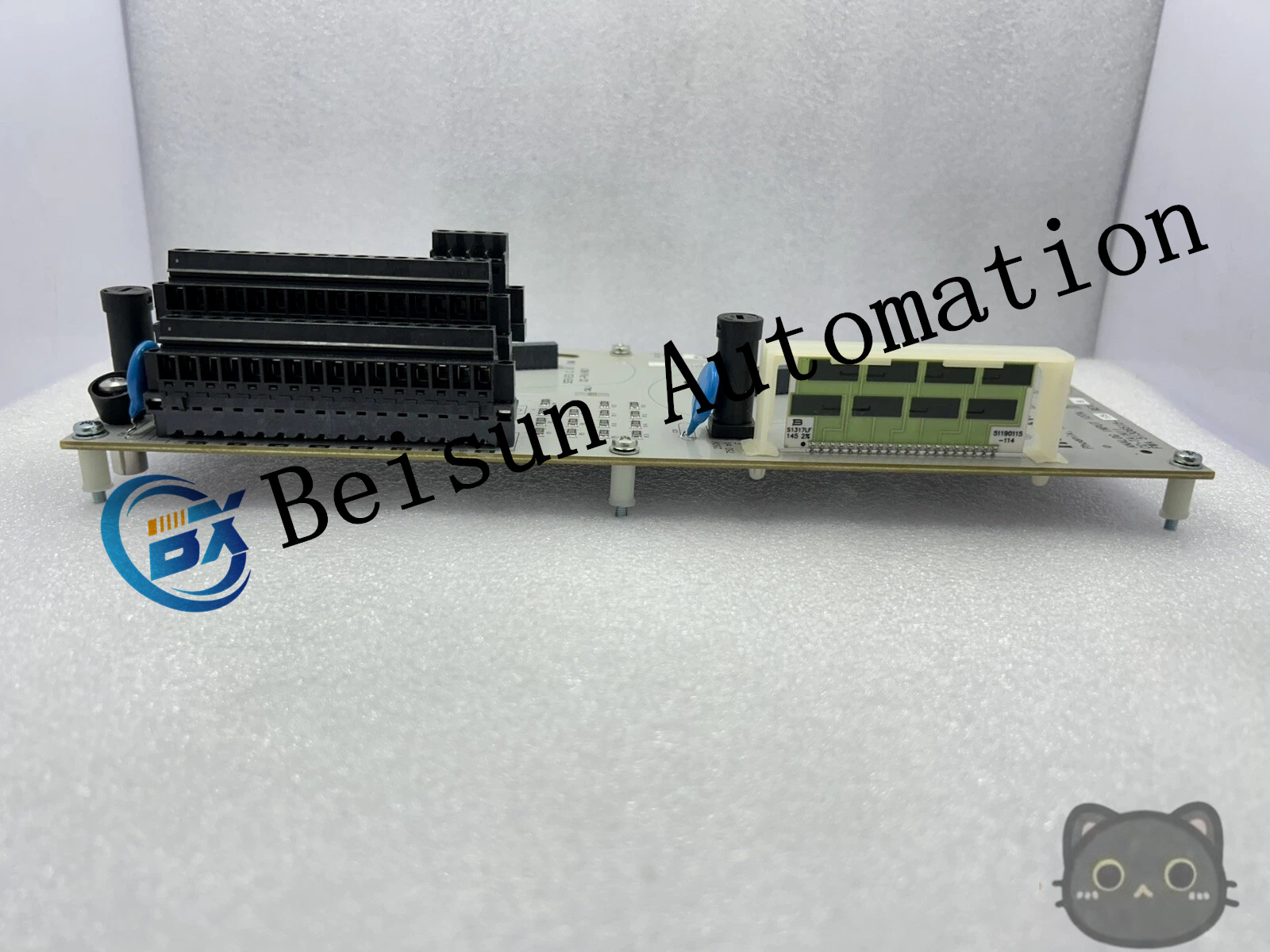

Honeywell CC-TAIN11 analog input module

Honeywell CC-TAIN11 analog input module

Input characteristics
Number of input channels: Usually, there are two configurations: 8 channels or 16 channels. You can choose according to actual needs, which is convenient for simultaneously connecting multiple analog sensors for data acquisition.
Signal type: Supports multiple analog input signals, including but not limited to 4-20mA current signal, 0-10V voltage signal, 0-5V voltage signal, etc. Through software or hardware configuration, the type of signal received by each channel can be flexibly set to adapt to the output characteristics of different sensors.
Input accuracy: Generally, it can reach ±0.1% FS (full scale), ensuring that the collected analog data has high accuracy, effectively reducing measurement errors, and providing a reliable data basis for precise control and analysis.
Resolution: It has a resolution of 12 or 16 bits, which means it can provide a more detailed quantization level when converting analog signals to digital signals. For instance, a 16-bit resolution can divide a full-scale signal into 65,536 different quantization levels, thereby more accurately reflecting the minute variations of analog signals.

Application scenarios
Energy management system: In the fields of power and energy, it is used to collect the operating parameters of equipment such as generators, transformers, and frequency converters, including analog signals such as voltage, current, and power factor. Through real-time monitoring and analysis of these data, the optimal scheduling, fault diagnosis and energy-saving management of the energy system can be achieved, improving energy utilization efficiency and reducing energy consumption and operating costs.
Intelligent building and facility management: In intelligent buildings, analog parameters of air conditioning systems, lighting systems, water supply and drainage systems, etc. can be collected, such as indoor temperature, humidity, light intensity, water flow velocity, etc. Based on these data, intelligent control and management of building equipment can be achieved, providing a comfortable indoor environment. At the same time, the goal of energy conservation and emission reduction can be realized, and the overall operational efficiency and management level of the building can be improved.
